What’s new in AutoCAD 2014: Drawing and annotation enhancements

April 17, 2013 by Edwin Prakoso 2 Comments

In this Article...

  • Drawing tools enhancements
    • Geographic location
    • Arc
    • Polylines
    • Sheet sets
    • CONVERTPSTYLES
  • Annotation enhancements
    • ATTDIA
    • Single line text
    • DIMCONTINUE
    • Hatch method
  • Do you like the enhancements?

Let’s continue AutoCAD 2014 review series. We will see what’s new in drawing tools and annotations.

Drawing tools enhancements

Geographic location

Do you remember how you set geographic location in AutoCAD before? We use it in setting AutoCAD sunlight for rendering before.

location_picker

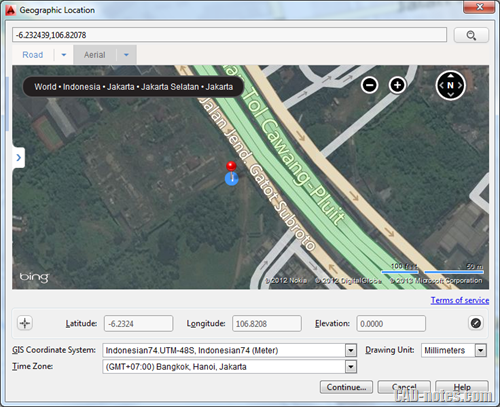

Now you can use Bing map to define geographic location. If you compare this to location picker above, of course this is much better. You can define geographic location more precisely. It would be easier to export and import geo referenced drawings/models.

setting_geographic_location

However, this is only for defining geographic location. You cannot use it for other purpose, such as printing. Or rendering.

Arc

Prior to AutoCAD 2014, drawing an arc is always counter clockwise. This is not everyone favorite and sometimes we do need to draw arc clockwise. In AutoCAD 2014, you can easily switch direction by holding ctrl key.

Polylines

I never notice this before, but we can’t fillet a polyline to itself. This is changed in AutoCAD 2014. Now you can fillet a polyline to itself. The result would be a closed polyline.

Sheet sets

Do you use text field in title block? Text fields allows you to use automated text. If you create a drawing, then your name can appear automatically in title block. It can show the plot date, last saved, etc.

If you use Sheet Sets, then it has more text fields. In our Sheet Set Manager e-book, we also cover about using fields in template.

One problem about fields in Sheet Set. If you create a template and save it, AutoCAD will use that creation date for every drawing you make. Let’s say you created the template in December 2012. If you create a new sheet using Sheet Set Manager, then you will get December 2012 as creation date. Not today.

This is fixed in AutoCAD 2014. You will get correct sheet creation date.

CONVERTPSTYLES

CONVERTPSTYLES is now support spaces in plot style name.

Annotation enhancements

ATTDIA

This is not enhancement, obviously. In AutoCAD 2014, ATTDIA is now set to 1. Prior to AutoCAD 2014, it was set 0.

If you set it to 0, AutoCAD will prompt you to input the value in command line.

ATTDIA_0

If you set it to 1, AutoCAD will display a dialog box like below.

ATTDIA_1

This is always be my preference, because my blocks have many attributes. This is better when most of the values are default.

Single line text

In AutoCAD 2013 or older, single line text justification is always left. If you need center justification, you need to change the setting. But when you activate single line text command again, the justification is back to left.

In AutoCAD 2014, this behavior is changed. The justification is kept until you change it.

DIMCONTINUE

DIMCONTINUEMODE is additional system variable to control continued dimension and baseline dimension.

If you set it to 0, the continued dimension will use current dimension style.

If you set it to 1, the continued dimension will use the original dimension style.

Hatch method

In older AutoCAD, when we activate hatch it always ask us to pick internal point. In AutoCAD 2014, it will maintain the previous method. So if you created hatch using select object method, the next time you use hatch command it will use select object method.

There is also an undo option in command line, allows you to cancel last region selection.

Do you like the enhancements?

Those are not major changes (except for Bing map, probably). However, sometimes it doesn’t matter. It’s more important if the changes significant to our work.

I will not say what I think about those enhancements. But I want to hear from you. Do you think those enhancements are good?



About Edwin Prakoso

I work as a Sr. Consultant in PT Cipta Satria Informatika. I've been using AutoCAD since R14 and Revit since Revit Building 9. I occasionally write for AUGIWorld magazine and I am also active in Autodesk discussion forum. I'm a member of Autodesk Expert Elite, an appreciation for individuals who give contributions to the Autodesk community.
Connect with me on twitter or LinkedIn.

Filed Under: Archive Tagged With: AutoCAD 2014

0 0 votes
Article Rating
Subscribe
Login
Notify of
guest

guest

This site uses Akismet to reduce spam. Learn how your comment data is processed.

2 Comments
Inline Feedbacks
View all comments
zee
zee
10 years ago

hi mr edwin – just one question …
how you which osnap were used to create a polyline ? ……….

I mean if you have some polyline in some drawing , and you want it to know what’s object snap ( ins – mid – end – qua – nod —–) were used to create this polyline ?

is ther a way or any command ?

0
Reply
Edwin Prakoso
Edwin Prakoso
Author
Reply to  zee
10 years ago

Zee, there’s no way you can know which snap they used to create a drawing. Why do you need to know that?
If you know what you are going to draw, then you can use available object snap that will work for you.

0
Reply
